Foldable Flat-Pack Container House Advantages

1. High Transportation Efficiency, Low Logistics Costs

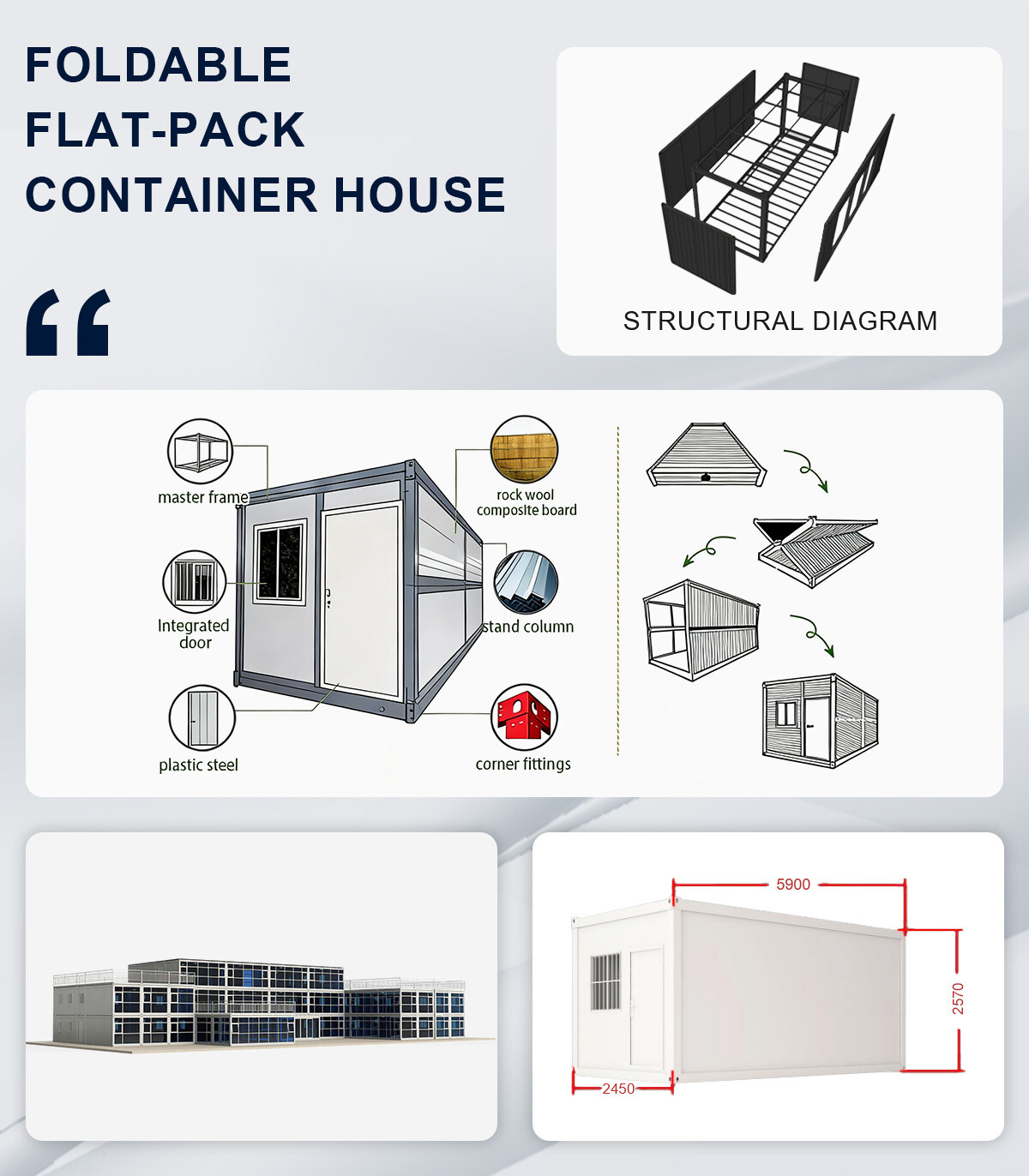

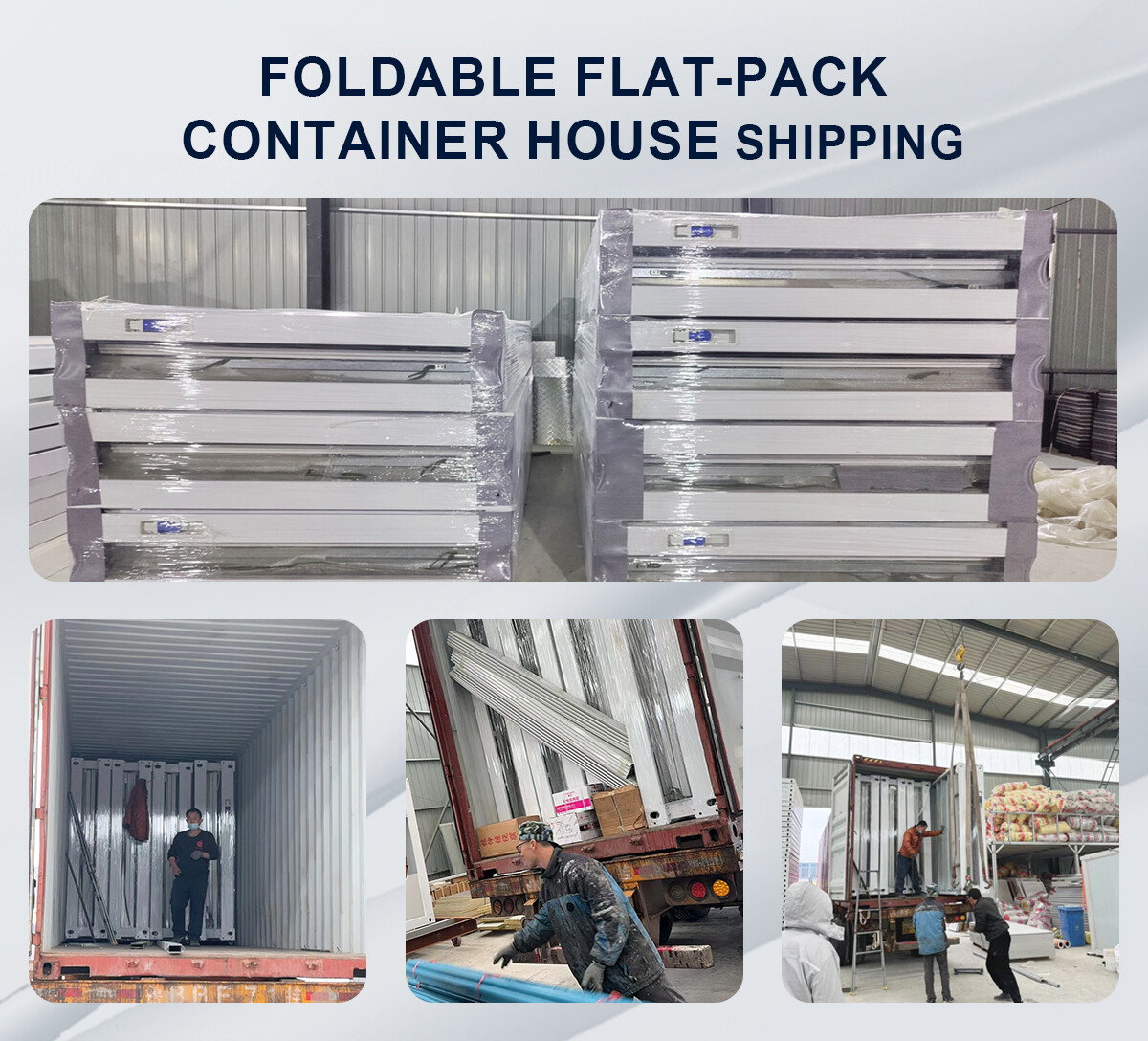

•Significant Volume Reduction After Folding: Take the common 5.9m specification as an example. After folding, the height is only about 0.56m (unfolded height: 2.57m). A single 40-foot high cube container (40HC) can load 8 units, compared to only 1-2 units in the unfolded state. This represents a 4-8 times increase in transportation capacity.

•Standard Container Compatibility: No special transportation equipment is required. It directly aligns with the loading and unloading processes of standard sea and land containers, reducing transit losses and additional freight costs.

2. Easy and Quick Installation, Low Labor Costs

•Simple Tools Needed: Thanks to its prefabricated splicing structure, a team of 2-4 people, using basic tools like wrenches and screwdrivers, can complete the assembly of a single unit within 1-2 days. This is in contrast to traditional prefabricated houses, which take 5-7 days for installation.

•No Foundation Modification Required: It can be directly placed on flat surfaces, such as cement or gravel ground, without the need for concrete foundation pouring. This feature makes it ideal for temporary sites or projects with tight schedules, like construction site dormitories and emergency shelters.

3. Strong Spatial Flexibility, High Reusability

•Foldable and Space-Saving: When not in use, it can be folded for storage, occupying only 1/5 of the space compared to its unfolded state. This makes it suitable for short-term projects that require frequent relocation, such as temporary exhibitions and short-term construction sites.

•Modular Combination: Each unit functions independently (e.g., a 1-bedroom, 1-bathroom unit), and multiple units can be bolted together to create larger spaces, like offices, dormitories, or classrooms. After disassembly, the units can be reused, with a reusability rate of over 80%.

4. Sturdy and Durable Structure, Excellent Environmental Adaptability

•Corrosion and Deformation Resistance: The main frame is made of hot-dip galvanized steel pipes (2.5-3.0mm thick), and the outer skin is 0.45mm colored steel sheet. This enables it to withstand humid, saline environments (ideal for coastal areas), wind, and rain, with a lifespan of 10-15 years, compared to 5-8 years for traditional prefabricated houses.

•Superior Thermal Insulation: It comes standard with a 75mm glass wool or 50mm rock wool composite insulation layer, paired with optional double-layer LOW-E glass. This provides excellent heat insulation in summer and warmth retention in winter, maintaining an indoor temperature 5-8℃ more stable than traditional prefabricated houses and reducing air conditioning and heating energy consumption.

5. Controllable Costs, High Cost-Effectiveness

•Lower Overall Costs: Although the unit ex-factory price is slightly higher than traditional prefabricated houses, the combined savings in transportation, installation, and reuse costs result in a 30%-40% lower long-term cost. For example, over 3 years with 2 project relocations, the savings are significant.

•Customizable Options: It offers flexible configuration choices, from basic options like plastic-steel windows to upgraded versions like aluminum alloy windows and Class A floor adhesive. This allows customers to control costs precisely by paying only for the features they need.

6. Wide Range of Applications

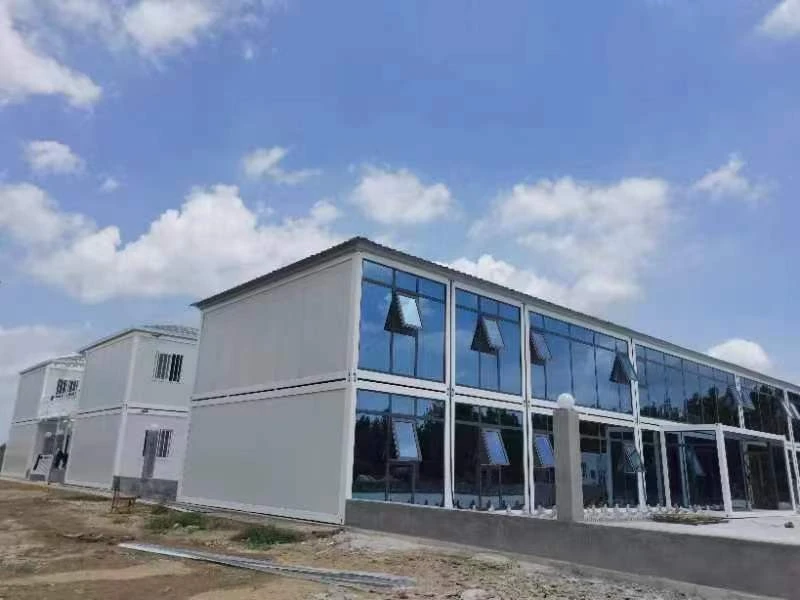

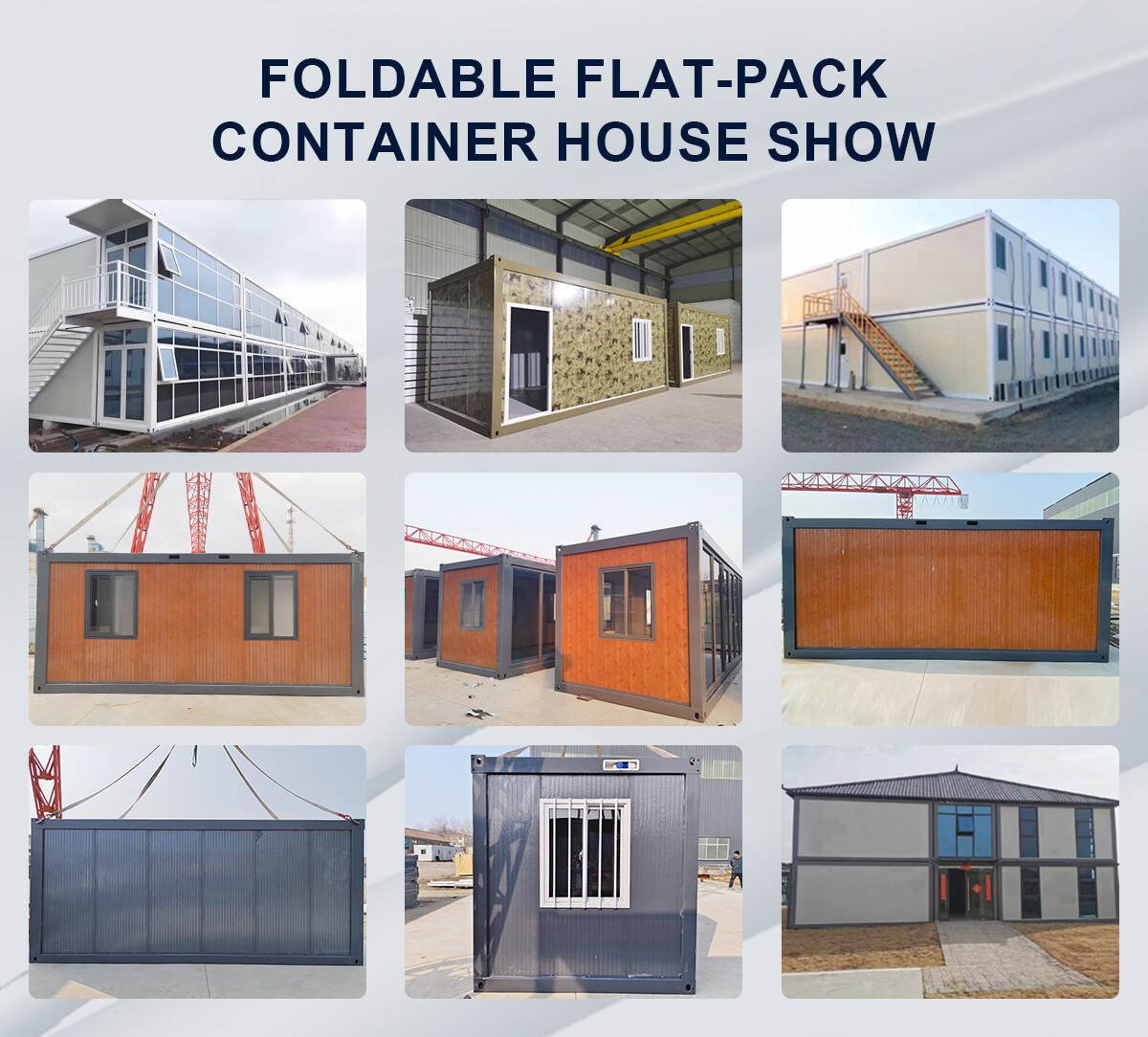

•Versatile Scenarios: It is suitable for various applications, including temporary buildings (construction site dormitories, emergency shelters), commercial use (pop-up stores, exhibition halls), residential use (rural guesthouses, auxiliary housing for the elderly), and industrial use (temporary factory offices, storage rooms). It also meets fire safety requirements with optional flame-retardant insulation materials.
