Fast Assembly Container Houses
Dimensions: Length 5990mm * Width 2990mm * Height 2870mm
Each set weighs about 1.3 tons.
Doors and windows: Custom-made steel doors and plastic-steel windows.
Wall: The wall uses 50mm EPS fire-retardant wall panels, which are easy and quick to install.

Product Details

Fast-Assembly Container House: The Ultimate Modular Building Solution

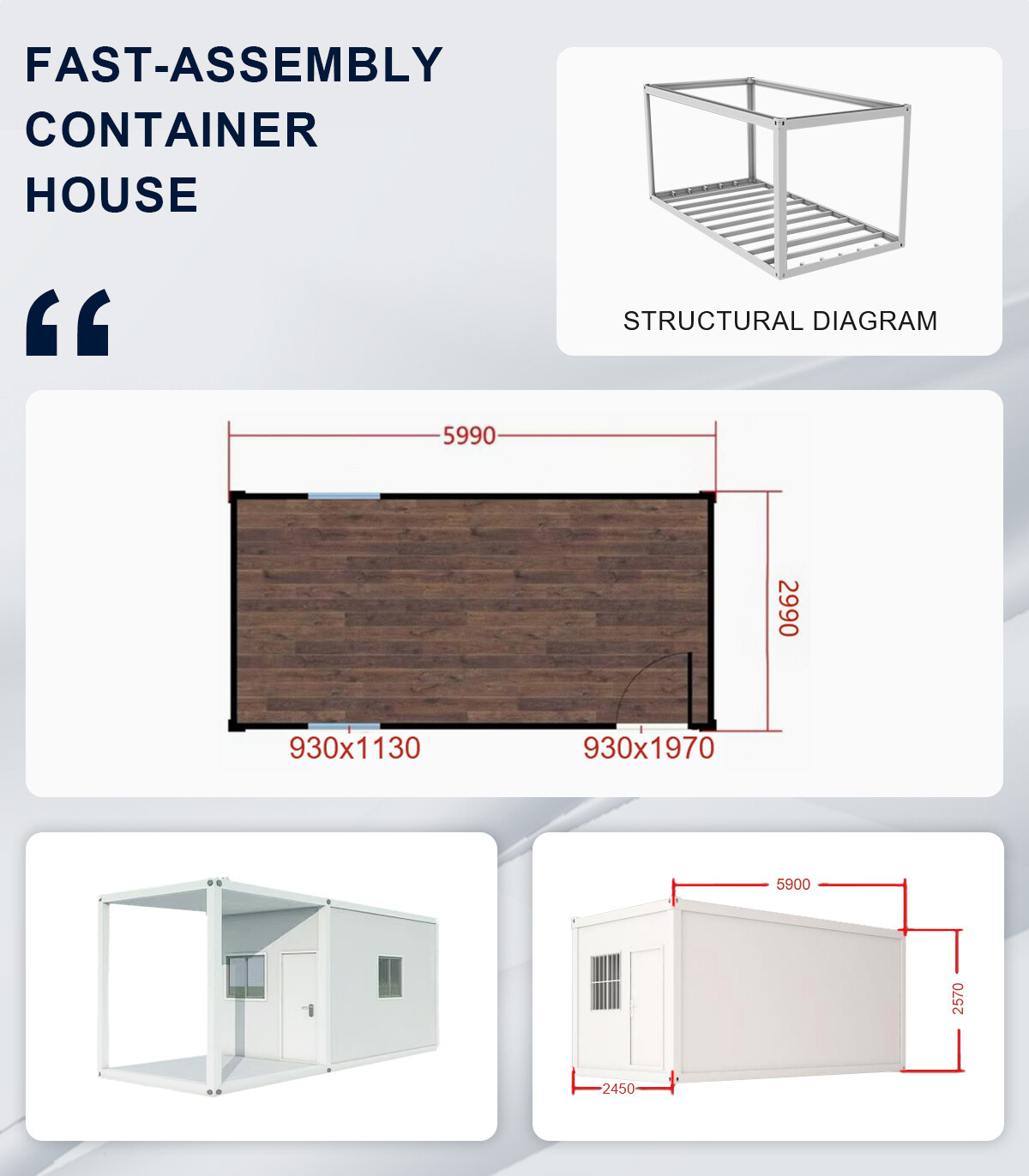

Introduction Diagram of Fast-assembling Container (1)


1. Introduction

Quick-assembly container houses represent a revolutionary shift in modern construction. As a leading innovator in this field, we provide high-quality, sustainable, and cost-effective modular building solutions that meet the diverse needs of projects worldwide. Whether you need a temporary facility or a permanent structure, our units deliver unparalleled efficiency and versatility.

2. Key Advantages & Features

2.1 Unmatched Speed of Installation

Time is money. Our standard container modules are pre-engineered and can be rapidly assembled on-site. A small team can have a single unit ready for use within hours, not days. For larger configurations, complete projects can be finished in a matter of days, slashing construction timelines by up to 80% compared to conventional methods. This incredible speed minimizes on-site labor costs and gets your operation up and running faster.

2.2 Superior Flexibility and Reusability

Adapt to changing needs with ease. Our container buildings are designed for multiple life cycles. They can be effortlessly dismantled, relocated, and reconfigured for different sites and purposes without significant loss of materials. Stack them vertically or join them horizontally to create expansive complexes for offices, dormitories, or retail spaces. This reusability transforms a temporary expense into a long-term, movable asset.

2.3 Built to Last: Durability and Safety

We never compromise on quality. The main frame is constructed from robust, hot-dip galvanized steel, offering exceptional resistance to corrosion and structural deformation. The walls are typically insulated with non-combustible rock wool sandwiched between steel panels, providing excellent fire resistance, thermal insulation, and soundproofing. Engineered to withstand harsh weather conditions (e.g., strong winds, earthquakes, snow loads) and comply with international standards (ISO or national building codes), our buildings are a safe and durable choice with a lifespan exceeding 20 years.

2.4 Eco-Conscious and Sustainable

Choose a greener way to build. The modular nature of our container houses drastically reduces material waste during production and on the construction site. The primary material, steel, is highly recyclable (over 90% recyclability rate) at the end of the building's long life. Additionally, many wall fillers (e.g., rock wool) are free of harmful substances, meeting global environmental standards. By opting for a reusable solution, you actively reduce your environmental footprint and contribute to a circular economy.

2.5 Cost-Effective and Economical

Gain significant financial advantages. Reduced construction time translates directly into lower labor costs. The efficiency of factory manufacturing controls material waste and expense. Furthermore, the ability to reuse and relocate units eliminates the need for repeated spending on temporary structures, offering outstanding long-term value.

3. Applications

Our quick-assembly container houses provide perfect solutions for a wide range of scenarios:

Construction Camps: On-site offices, secure equipment storage, and comfortable worker accommodations.

Commercial Ventures: Pop-up retail shops, trendy cafes, mobile showrooms, and exhibition booths.

Emergency & Remote Areas: Rapid deployment of emergency relief shelters, medical clinics, and military field camps.

Industrial & Institutional Use: Guard houses, secure checkpoint booths, portable classrooms, and modular laboratories.

4. Our Design Philosophy: Smart, Customizable, Ready

We believe in smart construction. Our units are not just boxes—they are fully customizable spaces tailored to your needs:

Pre-installed systems: Electrical wiring, plumbing, network lines, solar panels, energy-efficient air conditioners, and smart door locks (for "plug-and-play" functionality).

Customizable details: Sizes, layouts, window/door positions, and high-end interior finishes (to align with your brand identity and functional requirements).

Experience the future of building with our innovative, ready-to-deploy container house solutions.

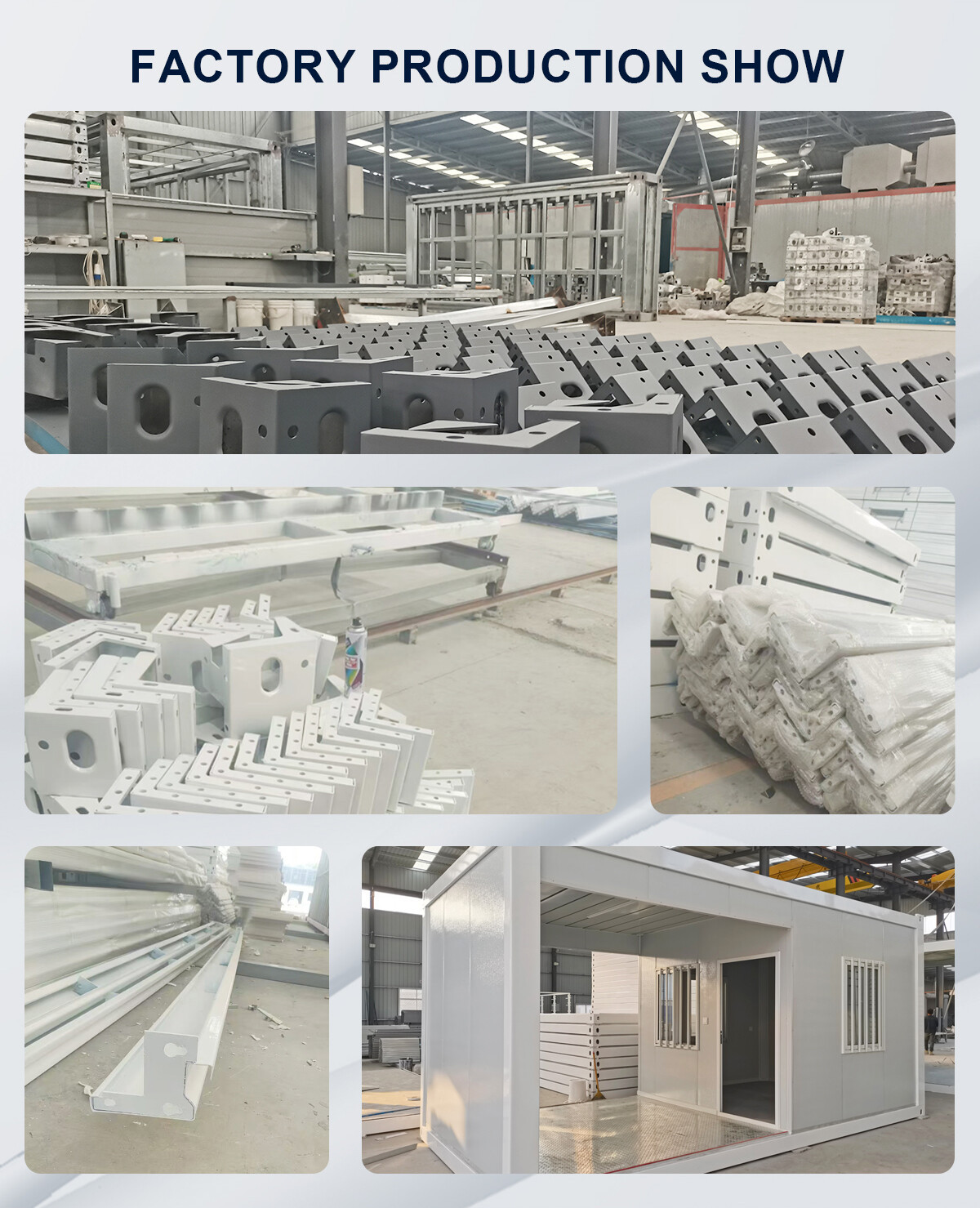

Introduction Diagram of Fast-assembling Container (2)



Core Technical Specification Comparison Table
Feature CategorySpecification DetailGable Roof ModelFlat Roof ModelBenefits & Notes
Overall DimensionsExternal Dimensions (L × W × H)5990 × 2990 × 2870 mm5990 × 2990 × 2870 mmStandardized sizes optimized for intermodal transportation and stacking storage.
Weight & StructureGross WeightApproximately 1300 kgApproximately 1300 kgBalances structural robustness with lightweight design for easy handling/transport.

Main Frame MaterialHigh-Strength Steel (2.2mm thick)High-Strength Steel (2.2mm thick)Ensures anti-deformation, corrosion resistance, and service life over 20 years.
Roof SystemRoof TypePitched Gable RoofFlat RoofGable design enhances water drainage and snow load resistance; flat roof suits compact spaces.

Roof PanelV950 Type (0.3mm color steel / 50mm rock wool core)Not SpecifiedRock wool core provides excellent thermal insulation (λ≤0.044 W/m·K) and fire resistance.
Wall SystemWall PanelV950 Type (0.30mm color steel / 50mm rock wool core)V950 Type (0.30mm color steel / 50mm rock wool core)Rock wool density: 70kg/m³; fireproof (Class A1), waterproof, and sound insulation (Rw≥35 dB); textured surface for durability.
Floor SystemFloor Deck18mm Cement Fiber Board18mm Cement Fiber BoardMoisture-proof, load-bearing (≥2.0 kN/m²), and provides stable base for flooring.

Floor Covering1.6mm PVC Plastic Floor (Optional)1.6mm PVC Plastic Floor (Optional)Wear-resistant, easy to clean, and ready for immediate use without secondary finishing.
Doors & WindowsDoor1970×970mm Standard Door (with Fire-Rated Lock)1970×970mm Standard Door (with Fire-Rated Lock)Fire-resistant (conforms to GB 12955) and anti-theft; ensures safe access control.

Window930×1130mm Double-Glass Double-Push Window (2 pcs)930×1130mm Single-Glass Double-Push Anti-Theft Window (2 pcs)Gable model’s double-glass enhances thermal insulation; flat model’s single-glass prioritizes security.
InteriorSuspended Ceiling0.30mm 831-Type Ceiling Panel (18㎡)0.30mm 831-Type Ceiling Panel (18㎡)Creates a neat interior appearance; hides wiring for a clean look.

Interior Finishing TrimsPowder-Coated Cover Strips (2500mm, 4 pcs)Powder-Coated Cover Strips (2500mm, 4 pcs)Corrosion-resistant; covers gaps for professional interior finishing.
Electrical SystemPre-Installed WiringMain: 3×6mm²; A/C: 3×4mm²; Sockets: 3×2.5mm²; Lighting: 2×1.5mm²Same as Gable Roof ModelFully pre-wired with copper-clad cables; no on-site wiring needed—ready for external power connection.

Outlets & Components1× Three-Hole Socket, 3× Five-Hole Sockets, 1× Single Switch, 1× Industrial Socket, 1× Distribution Box1× Three-Hole Socket, 2× Five-Hole Sockets, 1× Single Switch, 1× Industrial Socket, 1× Distribution BoxMeets daily power needs (e.g., A/C, appliances); distribution box with leakage protection.

Lighting2× LED Strip Lights2× LED Strip LightsEnergy-efficient (≤18W/pc); provides uniform illumination (≥300lux).
LogisticsUnits per 40HQ Container12 units15 unitsFlat roof model offers higher loading density, reducing shipping costs per unit.

Units per 20GP Container5 units7 units

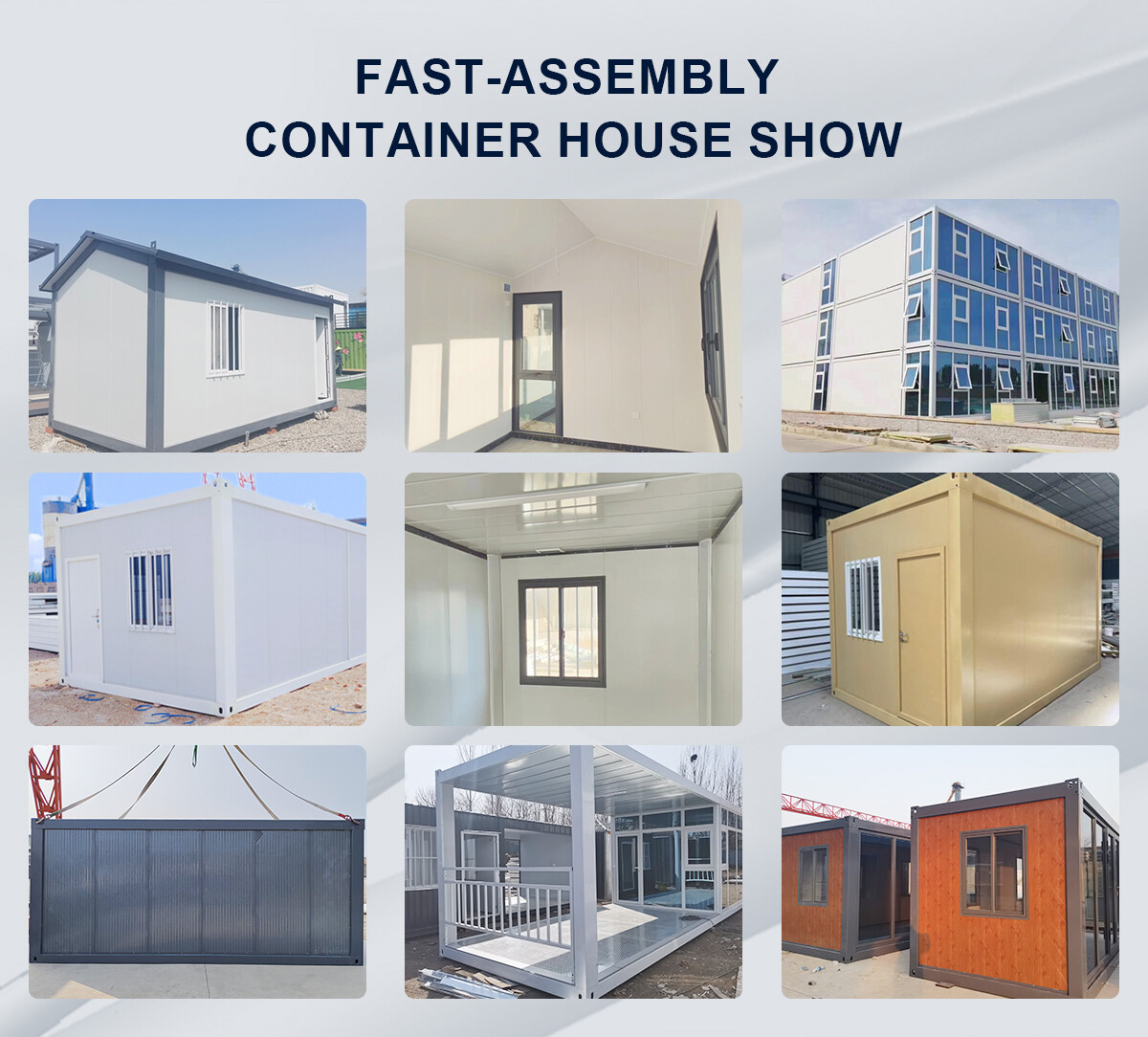

Introduction Diagram of Fast-assembling Container (3)

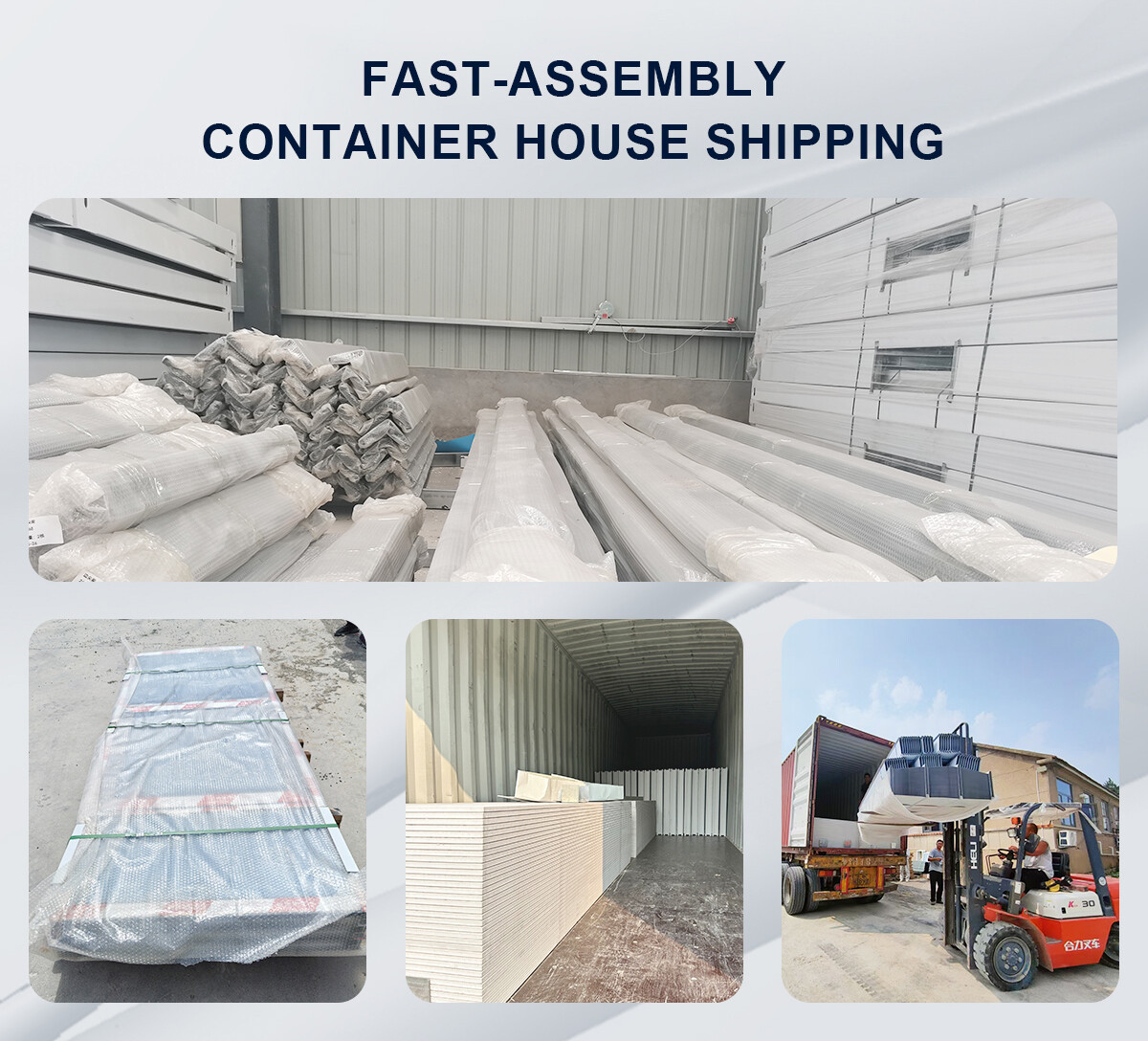

Introduction Diagram of Fast-assembling Container (4)
